Spray Chambers

An extensive range of high quality direct replacement spray chambers to keep your instrument running.
The range includes Conical, Cyclonic and Scott style spray chambers along with adapters and fittings. Spray chambers fitted with a fully removable Teflon® insert, replacing the conventional O-ring, are available allowing the user to fully immerse the spray chamber in an acid-bath for removal of residue build-up.
We offer replacement products for all the major instrument manufacturers that are unconditionally guaranteed to meet or exceed the original manufacturer’s specifications.
Please contact us for any help in finding the product for your instrument.
Alphabetical Alphabetical Reversed Latest Popularity

Quick Disconnect for Nebulizer/Spray Chamber, Teflon

Code: QX101004
Quick disconnect for nebulizer sample inlet or spray chamber drain, Teflon with PFA Capillary Tubing.
Spray Chamber, Quartz, Scott Double-Pass, Agilent 7500/7700/8800

Spray Chamber, Quartz, Scott Double-Pass, Agilent 7500/7700/8800

Code: QX101335
Quartz scott spray chamber with inner/outer tube flush, drain & exit for use with Agilent 4500, 7500 and 7700/7900/8800. Used for babbington, concentric, and micro-concent...
Scott Spray Chamber, Double Pass, 12/5 Joint

Scott Spray Chamber, Double Pass, 12/5 Joint

Code: QX100857
Borosilicate scott spray chamber, double pass, 12/5 joint, 14/20 ground joint drain
Cyclonic Spray Chamber, 50ml, Baffle, 18/9 Joint, 4mm Drain

Cyclonic Spray Chamber, 50ml, Baffle, 18/9 Joint, 4mm Drain

Code: QX100732
50ml Borosilicate cyclonic spray chamber with baffle 18/9 joint, 4mm drain

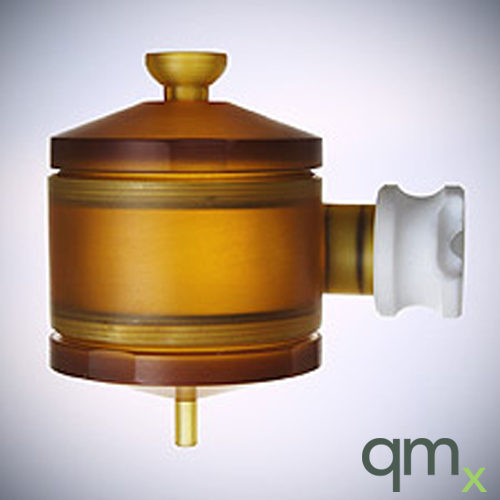

Ultem Cyclonic Spray Chamber, No Baffle

Ultem Cyclonic Spray Chamber, No Baffle

Code: QX101087
Ultem Cyclonic Spray chamber without baffle for the ultimate in flexibility The Ultem spray chamaber is unique because it is comprised of 3 separate components - a top cap, mi...
Cyclonic Spray Chamber, 50ml, 40mm Neck, 10mm Drain

Cyclonic Spray Chamber, 50ml, 40mm Neck, 10mm Drain

Code: QX101085
50ml Borosilicate radial cyclonic spray chamber, 40mm neck, 10mm drain
Spray Chamber, Mini Cyc. for OPT2000

Spray Chamber, Mini Cyc. for OPT2000

Code: QX101084
  Mini cyclonic spray chamber, 20ml, Borosilicate, 12/5 joint, 4mm drain
Mini-Cyclonic Spray Chamber, 20ml, 12/5 Joint

Mini-Cyclonic Spray Chamber, 20ml, 12/5 Joint

Code: QX101082
Mini cyclonic spray chamber, 20ml, norosilicate, 12/5 joint, PTFE insert
Cyclonic Spray Chamber, 50ml, Baffle, 80mm Neck

Cyclonic Spray Chamber, 50ml, Baffle, 80mm Neck

Code: QX101081
50ml Borosilicate cyclonic spray chamber with baffle, 4mm drain, PTFE insert Supplied with PTFE insert for use with 6mm nebulizers
Cyclonic Spray Chamber, 50ml, Baffle, 40mm Neck, 4mm Drain

Cyclonic Spray Chamber, 50ml, Baffle, 40mm Neck, 4mm Drain

Code: QX101076
50ml Borosilicate cyclonic spray chamber with baffle, 40mm neck, 4mm drain, PTFE insert Supplied with a PTFE insert for use with 6mm nebulizers
Cyclonic Spray Chamber, 50ml, Quartz, 11.3mm Exit

Cyclonic Spray Chamber, 50ml, Quartz, 11.3mm Exit

Code: QX101096
50ml Quartz cyclonic spray chamber, 11.3mm exit, 4mm darin. Ideal for boron analysis

Cyclonic Spray Chamber, 50ml, Quartz, 12/5 Joint

Code: QX101069
50ml Quartz cyclonic spray chamber, 12/5 joint, 4mm drain
